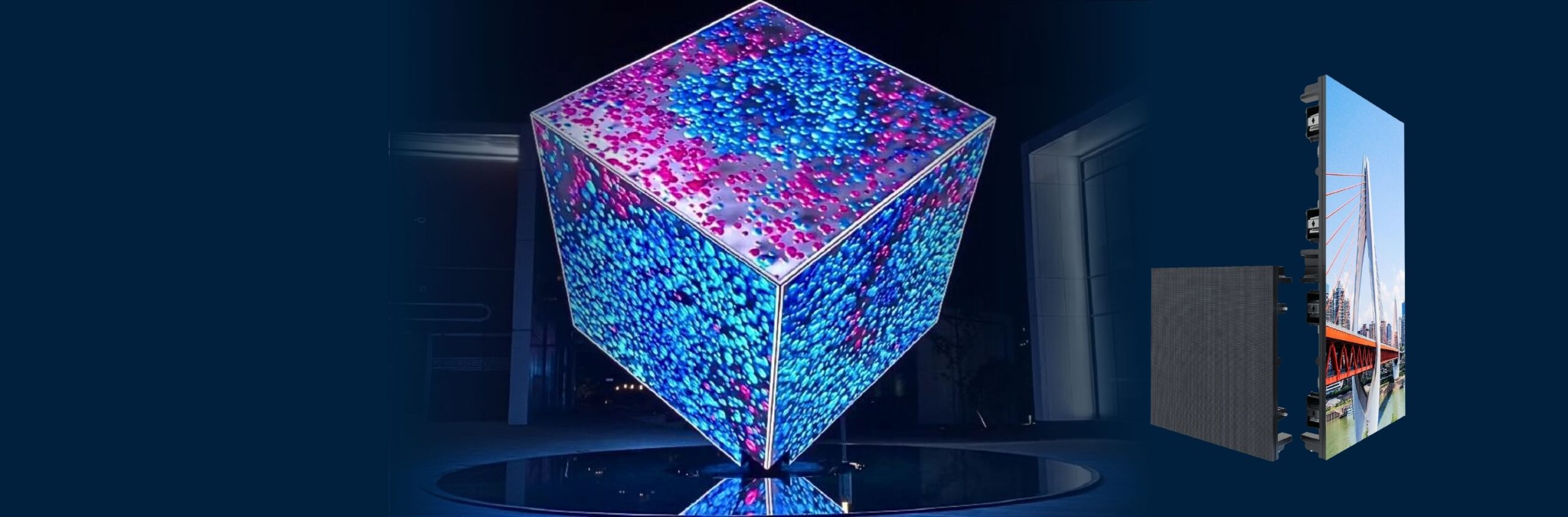

Product Overview
Features
- The cabinet is square or rectangular
- Ultra-slim design, with a thickness of only 91mm
- The magnesium alloy construction ensures both durability and a lightweight form factor
- Perfectly suited for point-of-sale displays
- Provides front and rear access for easy maintenance
- Features high-brightness full-color LEDs, ensuring optimal display performance in outdoor environments
Dimensions(mm)
Product Details
Handle
Rear cover
Positioning pin
Side lock
Application
90 Degree Angles
Allow for creating seamless right corners.
Angle Lock Design
It can be spliced at any angle from 0-20°
Support inner and outer arc splicing,
minimum radius 10m.
Specification
Scroll
| Parameters | FT-X2.9-SSO | FT-X3.1-SSO | FT-X3.9-SSO | FT-X4.8-SSO | FT-X5.9-SSO |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2.9 | 3.1 | 3.9 | 4.8 | 5.9 |
| Module Size (mm) | 250*250 | ||||
| Cabinet Size (mm) | 500*500*91 | ||||
| Weight (Kg/㎡) | 28 | ||||
| Refresh Rate (Hz) | 1920-3840 | ||||
| Brightness (nits) | 5000 | ||||
| Peak Power Consumption (W/㎡) | 650 | ||||
| Protection level | IP65 | ||||
| Service Method | Front / Rear | ||||
| Cabinet Material | Magnesium alloy | ||||
